Details

---

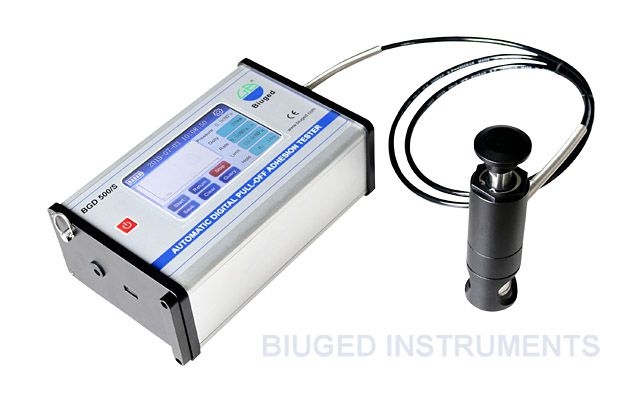

BGD 500/S Automatic Digital Pull-off Adhesion Tester is a new intelligent adhesion testing instrument developed by our company. It hydraulically tests the coating of a specific area. The whole process of pull-off is automatically performed by the instrument.

Main Technical Parameters:

* Dolly Size： 20mm（Standard）；10mm、14mm、50mm（Optional）

* Resolution： 0.01MPa（1psi）

* Accuracy： ±1% Full scale

* Max. Pull-off Pressure：
  Φ 10mm dolly →2.8-80MPa；Φ14mm dolly→1.4-40MPa；Φ20mm dolly→0.7-20MPa；Φ50mm dolly→0.4-3.5MPa
* Pull-off Rate Set Range：
      10mm dolly→0.4-6 MPa/s；14mm dolly→0.2-3 MPa/s；20mm dolly→0.1-1.5 MPa/s；50mm dolly→0.02-0.24MPa/s

* Power：Built-in rechargeable lithium battery, and standard configuration charging adapter.

* Tester Size（L x W x H）：240mm×138mm×81mm

* Tester Weight：4KG
