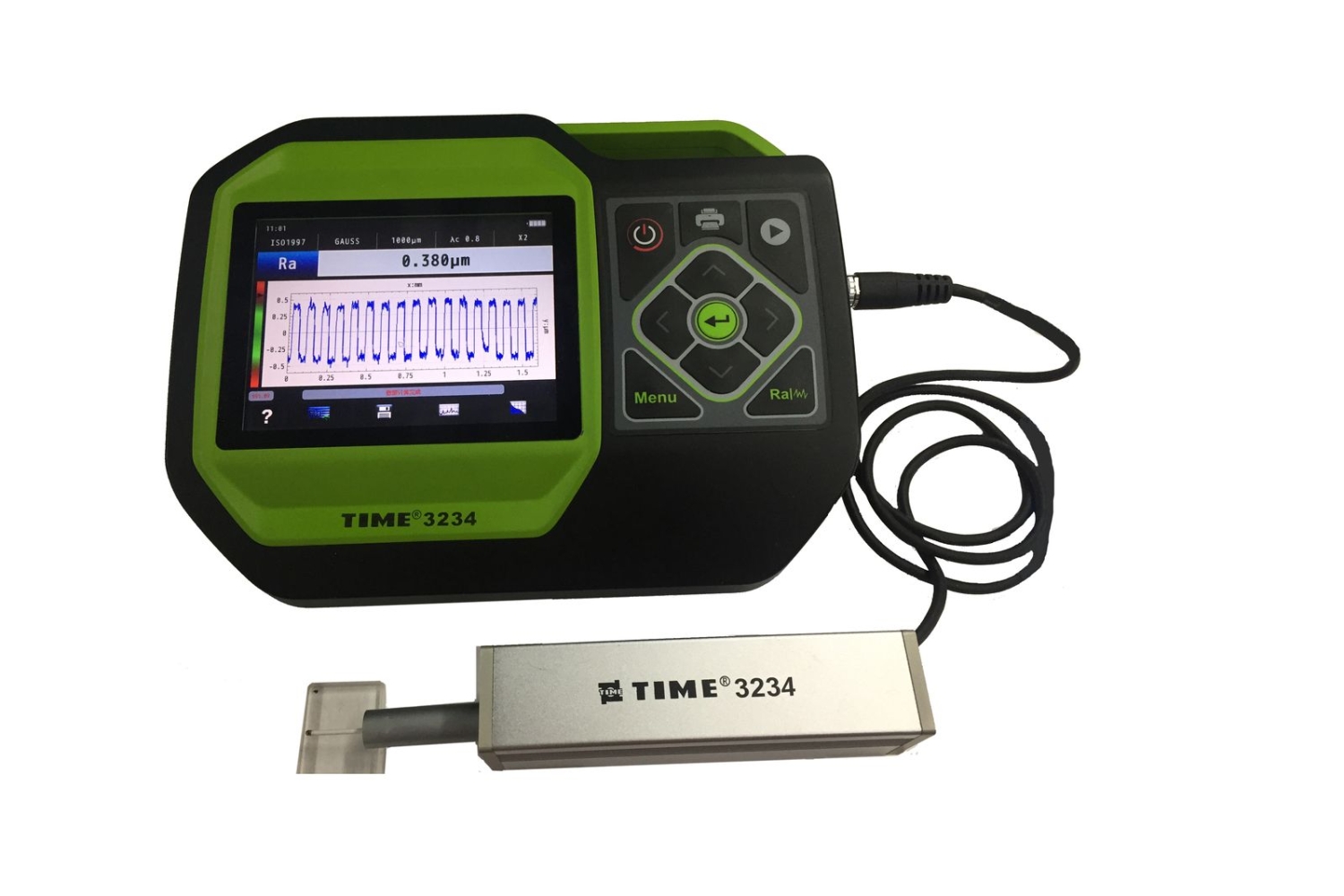

TIME - Surface Waviness Tester (3234)
Specifications
Details
Product Details:
A complete surface finish testing tool, the TIME 3234 is a cutting-edge Surface Waviness and profile measurement gauge. It can gauge primary profile, waviness, and roughness. The test findings can be transmitted to a printer or shown digitally and graphically on the LCD screen. Additionally, it can use the specialised software to link to a computer for data analysis. Meets roughness requirements set forth by ISO4287-1997, JIS 0601: 2001, ANSI, and SEP1941-201.
Product Features:
Product Features:
- Using Linux operation system. High calculation accuracy, fast data processing speed and friendly user interface.
- Separated design for easy operation.
- Portable design and easy to carry.
- It can measure surface roughness, waviness and primary profile.
- It has a wide measuring range of 1000 μm and maximum tracing length up to 50 mm.
- 5.7 inch TFT LCD screen to clearly display the evaluation curves.
- With touch screen to quickly set the measuring conditions on the screen.
- Mouse operation is supported
- Store 10,000 groups of measuring conditions and data
- Measurement data can be stored in U disk
- Measurement with or without skid.
- Print measurement parameters and profile curves
- Equipped with optional advanced analysis software.
- Conforming to the roughness standards including ISO 4287-1997; JIS 0601:2001; ANSI; SEP1941-2012.
