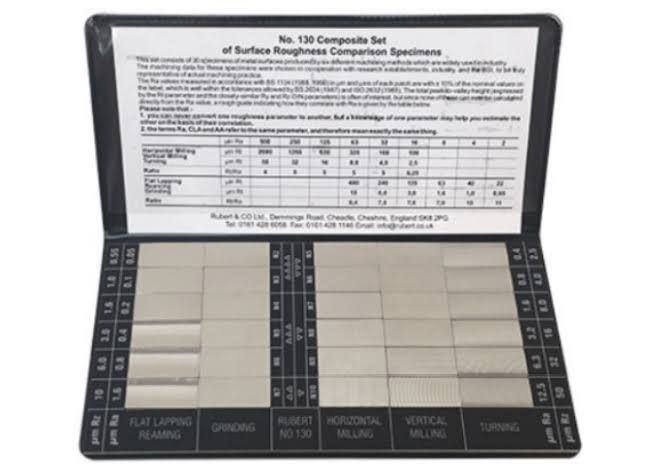

Surface Roughness Comparator

Technical Specifications
Range: 0.05 to 12.5 μm

Roughness Type:
* Turning
* Vertical Milling
* Horizontal Milling
* Plain Grinding
* External Grinding
* Plat Lapping

Features:
Note book sample block (turning, vertical milling, plain milling, plain grinding, external grinding, polishing.)
Notebook sample block contains standards for the six most important matching methods in the prevalent “AA” values. All 30 specimens are calibrated in uAA(Arithmetical Average) and in the metric equivalents um Ra. Surface roughness

Comparison Scales following:

Turning		Vertical Milling		Horizontal Milling		Plain Grinding		External Grinding		Plat Lapping
um	uin	um	uin	um	uin	um	uin	um	uin	um	uin
12.5	500	12.5	500	12.5	500	1.6	63	1.6	63
6.3	250	6.3	250	6.3	250	0.8	32	0.8	32
3.2	125	3.2	125	3.2	125	0.4	16	0.4	16
1.6	63	1.6	63	1.6	63	0.2	8	0.2	8
0.8	32	0.8	32	0.8	32	0.1	4			0.1	4
0.4	16	0.4	16	0.4	16	0.05	2			0.05	2
