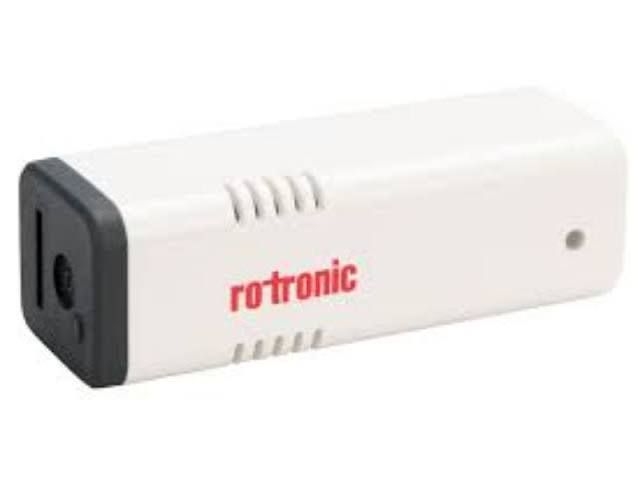

Rotronic RMS-MLOG-B-868 – WIRELESS MINI DATA LOGGER – TEMPERATURE & HUMIDITY

Category: Rotronic Monitoring System

Specifications

wireless mini data logger low-cost data logger Temperature & Humidity

Details

Description

The wireless mini data logger is the low-cost data logger in the ROTRONIC monitoring system. Its small housing and wireless interface make it a really flexible data logger. The mini logger is available in various sensor variants: temperature sensor (NTC), external temperature sensor (NTC) & light, voltage measurement, current measurement, or digital switch contact. With this versatility, it can monitor refrigerators and incubators, as well as door contacts and OEM analog devices.

Features

Measures Temperature & Humidity
Stores 10,000 measured values, 13,000 data points (RMS-MLOG-B)
Fail-safe, thanks to internal battery
3 years battery lifetime
Compatible with RMS Gateway, RMS server software and RMS Cloud
Conforms to FDA 21 CFR Part 11 / GAMP5

Specification

RANGE OF APPLICATION	-40…85 °C (-40…185 °F) / 0…100 %RH
POWER SUPPLY	1 x AA, RMS-BAT (Model: ER14505M)
BATTERY LIFETIME	2.5 years (at 23 °C and interval of 1 minute)
MEASURED VALUE MEMORY	10,000 measurement values, 13,000 data points (RMS-MLOG-B/RMS-MLOG-BT)
MEASUREMENT INTERVAL	10 s to 15 min
EXPLOITATION SOFTWARE	RMS-Config / RMS Server Software / RMS Cloud
SOFTWARE UPDATE	Via RMS-Config / RMS Server Software / RMS Cloud
COMMUNICATION INTERFACES	868 MHz
HOUSING	ABS
IP PROTECTION RATING	IP65
FDA/GAMP COMPATIBILITY	FDA 21 CFR Part 11 and GAMP compatible
DIMENSIONS	83 x 29 x 29 mm
WEIGHT	100 g
