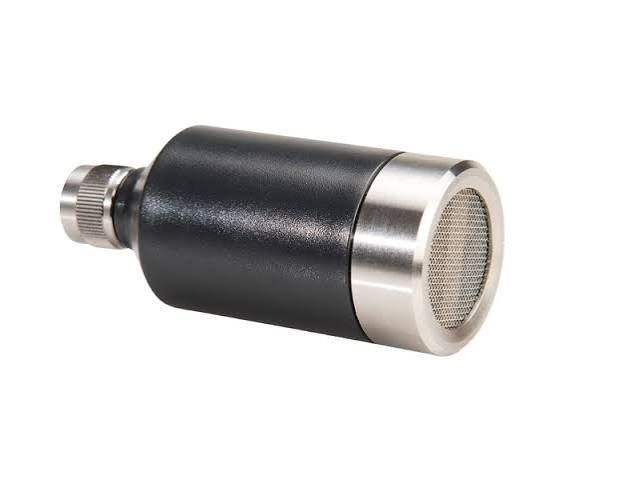

Rotronic CCD-S – RMS CO2 PROBE

Category: Rotronic Monitoring System

Specifications

Rotronic Monitoring System RMS - Probe (Co2) Rotronic

Details

Description

The Rotronic CO₂ probes are ideal for office rooms and applications where the quality of room air has a big effect. Together with other measurement parameters, these probes can be integrated in RMS perfectly.

Applications

Open-Plan Offices
Classrooms
Shopping Centers

Advantages

High-precision measurement and long-term stability
With ambient pressure compensation
Large measurement range
With automatic CO₂ calibration
Compatible with RMS-Logger, RMS On-premises software and SaaS solutions

Specification

ACCURACY @ 25 °C ±10 K, 20 – 60 %RH (AFTER MIN. 3 WEEKS ABC)	±50ppm ±3% of read value @ 0–2000ppm±10% of read value @ 2000–10,000ppm
AMBIENT PRESSURE & TEMPERATURE COMPENSATION	Automatic (300 – 1100hPa)
PARAMETERS	CO2 concentration (ppm / %)
MEASURING RANGE	0…2000ppm / 5000ppm / 10’000ppm
RANGE OF APPLICATION	0…50 °C / 0…95 %RH, non-condensing
RESOLUTION	1 ppm
MEASUREMENT PRINCIPLE	Infrared (NDIR) with automatic calibration (ABC)
ADJUSTMENT POINTS	Factory adjustment/calibration: 1 pointCustomer adjustment: max. 9 points
MEDIUM	Air and non-aggressive gases
BATTERY LIFETIME	2.7d @ 10s/60s interval (RMS wireless/LAN logger)
WARM-UP TIME	≤300s
RESPONSE TIME T 63	130s @ level descending87s @ level ascending
CURRENT CONSUMPTION	20 mA (avg.) / peak 260 mA (16 s interval)
MEASUREMENT INTERVAL	16s probe
COMMUNICATION INTERFACES	UART
PROTOCOLS	Modbus RTU
FIRE PROTECTION CLASS	UL94-V2
HOUSING	Polycarbonate (housing)Stainless steel DIN 1.4305 (nuts)
IP PROTECTION RATING	IP40
FDA / GAMP	FDA 21 CFR part 11 / GAMP5
DIMENSIONS	Ø 32mm x 87mm
WEIGHT	55g
