Model: 1018H (Hard case type)

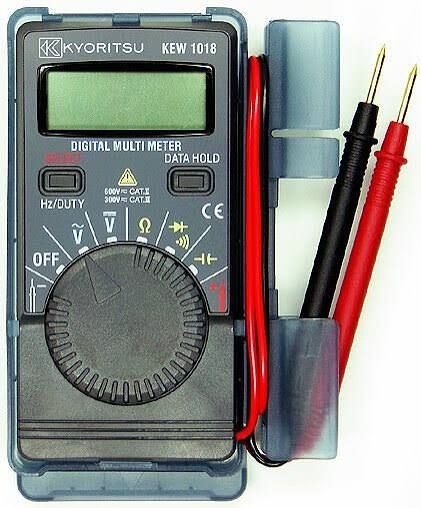

KYORITSU 1018H Digital Pocket Multimeter

The KYORITSU 1018H Digital Pocket Multimeter is a compact, high-performance measuring instrument engineered for precise electrical readings on the go. The KEW 1018H offers AC/DC voltage, resistance, and continuity measurement in a lightweight, portable design. Its durable casing and clear display ensure reliable operation for electricians, technicians, and maintenance professionals during field inspections and daily troubleshooting tasks.

Specifications for KEW 1018H

Measurement	Range	Accuracy
DC Voltage (DCV)	400mV, 4V, 40V, 400V, 600V	±0.8%rdg ±5dgt (400mV to 4V), ±1.0%rdg ±5dgt (40V to 600V)
AC Voltage (ACV)	4V, 40V, 400V, 600V	±1.3%rdg ±5dgt (50/60Hz), ±1.7%rdg ±5dgt (up to 400Hz)
Resistance (Ω)	400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ	±1.0%rdg ±5dgt (up to 4MΩ), ±2.5%rdg ±5dgt (40MΩ)
Capacitance	4nF, 40nF, 400nF, 4µF, 40µF, 200µF	±3.5%rdg ±5dgt (up to 40nF), ±4.5%rdg ±5dgt (higher ranges)
Frequency	10Hz to 10kHz	±0.1%rdg ±5dgt
Continuity Check	Buzzer sounds below ~120Ω	-
Diode Check	Forward voltage displayed	-

General Specifications

Safety Standards	IEC 61010-1 CAT III 300V / CAT II 600V
Display	LCD, maximum reading of 3999
Power Supply	Two LR44 (1.5V) batteries
Auto Power Off	After ~15 minutes of inactivity
Dimensions	107mm x 54mm x 10mm
Weight	Approx. 70g (with batteries)
Accessories Included	Portable holder, batteries, instruction manual

Warranty: 1 Year
